BUFFALO No. 14 Heavy Duty Drill Press Operator's & Parts Manual

This is a reproduction, not a photocopy, of an original Buffalo No. 14 Drill Press Maintenance, Operator's and Parts Manual. This manual contains information about set up, operating instructions, lubrication, adjustments, and cross-sectional parts diagrams with parts list. Please see contents below:

This manual covers both the Pedestal and Bench-Type drills.

Contents:

Installation...............................2

Operation..................................2

Twist Drill Failures and Their Causes......3

A Few Don'ts for Operators.................3

Cutting Oils...............................3

Repair.....................................4

Lubrication................................5

Adjustments................................6

Illustration of Parts....................6&7

Repair Parts List..........................8

Repair Parts List..........................9

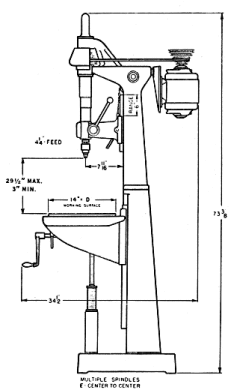

Overall Dimensions—Pedestal Type..........10

Overall Dimensions—Bench Type.............11

Table Of Speeds...........................12

Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
