| Number of Pages: 38

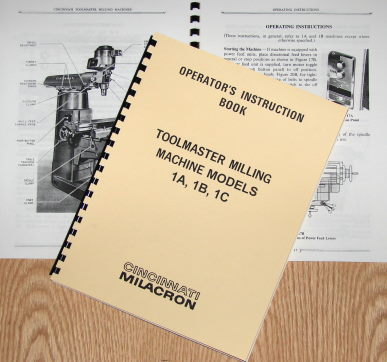

This is a reproduction, not a photocopy, of an original Cincinnati Toolmaster Milling Machine Models 1A, 1B, 1C Operator's Instruction Manual. This manual contains information on set up, lubrication, maintenance, and adjustments.
Contents Principal Machine Specifications..................7 Dimensional Drawing...............................8 Standard Equipment................................9 Installation Instructions.....................10-11 Lubrication...................................12-14 Starting the Machine for the First Time..........15 Functional Diagram...............................16 Operating Instructions........................17-23 Setting Up the Machine...........................24 Adjustments...................................25-27 Recommendations on Cutting Fluids................28 Precautionary Measures...........................29 Accessories and Attachments...................30-36 Ordering Repair Parts............................37 Alphabetical Index...............................38
Overview I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page,and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench. |
