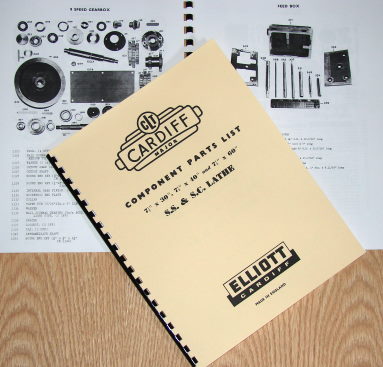

This is a reproduction of an original Elliott Cardiff Major 7.5" Lathe SS and SC Models Part Manual. This manual covers lathes with 30", 40", and 60" beds. It contains pictorial views of all the parts.

Overview:

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear.
