| Description |
Number of Pages: 30

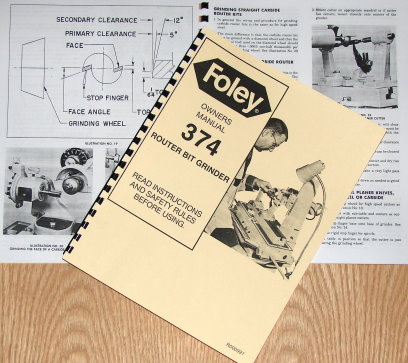

This is a reproduction, not a photocopy, of an original Foley-Belsaw Model 374 Router Bit Grinder Instructions and Parts Manual. This manual contains information on lubrication, maintenance, adjustments, operations, and controls. It also contains exploded view diagrams of all the parts for the machine. Please read contents below.
Contents:

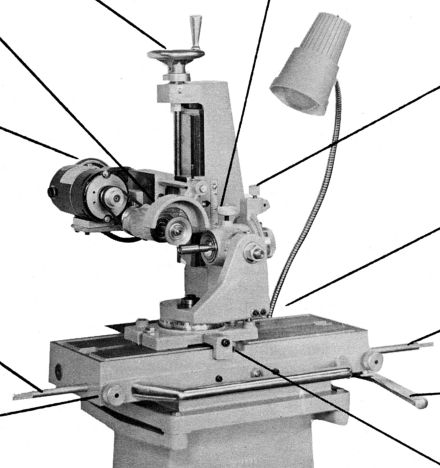

GENERAL VIEW OF GRINDER SHOWING ADJUSTMENT.............................3
GENERAL SPECIFICATIONS.................................................4
INSPECTING SHIPMENT OF THE GRINDER.....................................4
SETTING UP THE GRINDER.................................................4
MACHINE LINE UP......................................................4,5
CENTER STAND AND SUB TABLE.............................................6
GRINDING WHEELS........................................................6
"V" BELT TENSION.......................................................7
GRINDING WHEEL GUARD...................................................7
WORK HEAD..............................................................7
STOP FINGERS...........................................................7
MANDRELS...............................................................8
COLLETS................................................................8
MIST COOLANT...........................................................8
DRESSING FLARING CUP GRINDING WHEELS, RESINOID OR VITRIFIED..........8,9
DRESSING STRAIGHT GRINDING WHEELS, RESINOID OR VITRIFIED..............10
TO DRESS RADIUS ON PERIFERY OF RESINOID OR VITRIFIED GRINDING WHEELS..10
CLEANING DIAMOND GRINDING WHEELS......................................10
GRINDING STRAIGHT HIGH SPEED STEEL ROUTER BITS.....................10,11
GRINDING SPIRAL HIGH SPEED STEEL ROUTER BITS.......................12,13
GRINDING STRAIGHT CARBIDE ROUTER BITS.................................14
GRINDING SPIRAL CARBIDE ROUTER BITS...................................14
GRINDING STRAIGHT PLANER KNIVES - HIGH SPEED STEEL OR CARBIDE.........14
GRINDING PLANER KNIVES, HIGH SPEED STEEL OR CARBIDE................14,15
GENERAL NOTES ON GRINDING STRAIGHT AND SPIRAL CUTTERS.................15
GRINDING SPUR BITS....................................................15
GRINDING FLUTED ROUTER BITS...........................................16
GRINDING END MILL CUTTERS.............................................16
GRINDING REAMERS......................................................17
TO GRIND END OF REAMERS...............................................17
GRINDING SMALL SLITTING SAWS AND KEY SEATER...........................18
GRINDING SHAPER CUTTERS...............................................18
MAINTAINENCE OF THE ROUTER BIT GRINDER.............................19,20
EXPLODED VIEW DRAWINGS & PARTS LIST...................................21
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
|
|
