| Description |
Number of Pages: 8

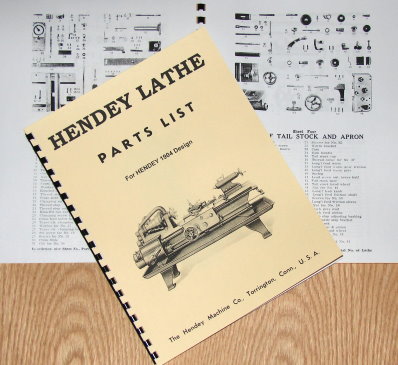

This is a reproduction, not a photocopy, of an original Hendey Cone Head Metal Lathe Parts Manual. This manual contains pictorial views of the parts as shown in the picture above. We also included a cross sectional diagram of the headstock and gear box from the cone head operator's manual we have for this lathe as well.
Overview
I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
|
|
