CRAFTSMAN-SEARS 15" 1/2 Heavy Duty Drill Press Manual

Price:

$15.00

Availability:

In Stock

Manual Description

Number of Pages: 24

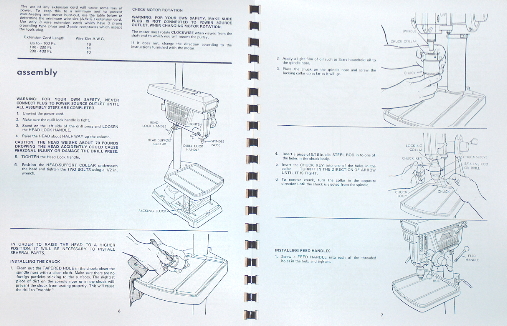

This is a reproduction, not a photocopy, of an original Sears Craftsman Heavy Duty 15-1/2 Inch Drill Press Owners Manual and Parts for model number 113.24520. This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list and exploded views and adjustments. This is one of the most complete manuals for a drill press that I have seen out there. One of the important things that the manual covers is how to remove and reinstall the chuck. This manual has a great description on setting up and aligning the pulleys and motor. There is also a detailed description on adjusting the quill spring with diagrams. This is a great drill press which I have personally owned and operated for over 30 years. You shouldn't let its little belt drive fool you, it will drill up to 2 inch holes with a spade bit.

Safety and General Information..............................1-5
Motor Specifications and Electrical...........................5
Assembly....................................................6&7
Chuck Installation............................................7
Installing Depth Stop.........................................8
Raising the Head............................................8&9
Installing Motor Pulley....................................9&10
Installing Motor.............................................10
Aligning Motor and Pulley....................................11
General Information and Know Your Drill Press.............12-14
Removing Quill...............................................14
Basic Drill Operation.....................................15&16
Adjustments..................................................17
Adjusting Quill Spring.......................................18
Troubleshooting..............................................19
Parts List and Diagrams...................................20-24


Sears Drill Press

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
