DELTA-MILWAUKEE Toolmaker Surface Grinder 24-105 Manual

Price:

$20.00

Availability:

In Stock

Manual Description

Number of Pages: 12

This is a reproduction, not a photocopy, of an original Delta-Milwaukee No. 24-105 Toolmaker Surface Grinder Instruction Manual, Plus Sales Catalog. This manual contains instuctions for operation and maintenance. This manual also contians speeds and lubrication. The parts list and diagram are complete. We added a catalog on the surface grinder that is a great compliment to the manual. It covers set up and accessories like a lot of the old catalogs contained.

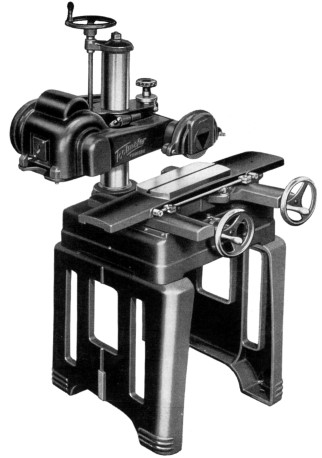

Delta Surface Grinder

If your machine looks similar to the one pictured, this manual should cover your machine. Delta/Rockwell changed the model number for every little change made on the machine including whether it was floor model or a bench model, the motor size, the spindle size, changes in magnetic switches, the type of fence, etc...For example the 15" Drill Press in one Catalog had over 45 different model numbers listed for the same basic drill press that year.

General Instructions....................................1
Column and Spindle Bracket............................1,2
Table Unit..............................................2
Surface Wheels..........................................2
Wheel Adapters..........................................2
Motors..................................................3
Lubrication Chart.......................................3
Parts Diagram...........................................4
Parts List..............................................5
Accessories.............................................6
Catalog
Discriptions of Parts...................................7
Accessories.............................................8
Motors..................................................8
Specifications........................................8,9
The Univise.............................................9
Grinder Attachment.....................................10
Unihead................................................11
Indexing Collars.......................................11

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
