DEWALT GR Radial Arm Saw Instructions Manual

Price:

$25.00

Availability:

In Stock

Manual Description

Number of Pages: 11

This is a reproduction of an original Dewalt GR Radial Arm Saw Instructions Manual.

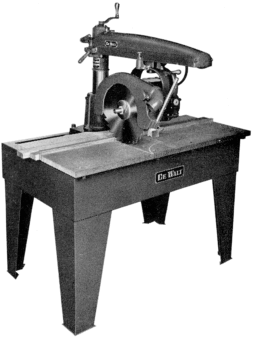

Dewalt Saw

Arbor rotation.......................................2
Arm clamp handle, to adjust..........................4
Base, to adjust to column............................4
Bevel clamp handle, to adjust........................6
Cut-off gauges.......................................2
Electrical requirements..............................1
Extension tables.....................................2
Floor space required.................................1
Guide strip, straightening of........................3
Guide strip, location during various operations......3
'Heeling', to correct in bevel position..............5
'Heeling', to correct during cut-off.................5
Legs, how to put on..................................1
Rip scale, to adjust for in-ripping..................6
Rip scale, to adjust for out-ripping.................6
Roller head bearing, to adjust to the arm track......5
Saw guard, to adjust.................................2
Sawdust hood.........................................2
Saw travel, to keep parallel to the arm..............5
Saw travel, to square with the guide strip...........4
Table top, to level..................................3
Wire sizes, table of.................................1
Uncrating the machine................................1
Yoke clamp, to adjust................................6

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
