HARDINGE HC-AT Chucking Machine Operator's Manual

Price:

$30.00

Availability:

In Stock

Manual Description

Number of Pages: 16

This is a reproduction, not a photocopy, of an original Hardinge HC-AT Super-Precision Chucking Machine Operator's Manual. This manual contains information on set up, lubrication, maintenance, adjustments, and controls. If you have this attachment, you need this manual. Check contents below.

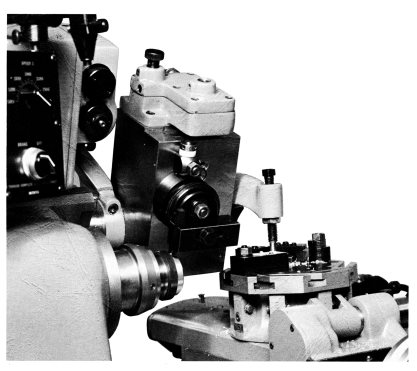

Hardinge HC at

Collet Closer
Removal.........................................2
Replacement.....................................2
Control Handle..................................4
Feed Rate Adjusting Screw.......................9
Guide Bar Support Bracket......................14
Lead Screws
To Change.......................................3
Available......................................14
Lead Screw Followers............................8
Change & Adjust.................................3
Available......................................14
To Control Retraction..........................10
Lubrication
Lead Screws & Followers.........................4
Lubro Control Unit..............................3
Other...........................................4
Parallelism, Checking Setup.....................4
Thread
Depth Control...................................8
Fine Adjustment Dial...........................12
Left Hand......................................12
Length Adjustment..............................10
Thread Control Charts
General Use....................................11
Brass and Aluminum.............................11
Threading Tool Holders.........................12
Threading Tools................................13
To Set on Center................................8
Threading Unit
Location........................................7
Setup...........................................9
Tool Setting Gage...............................5

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
