SOUTH BEND 10L 13" 14.5" 16" 24" 40'-50's Lathe Part Manual

Price:

$35.00

Availability:

In Stock

Add to Cart

Manual Description

Number of Pages: 40

This is a reproduction, not a photocopy, of an original South Bend 10L Lathe Parts Manual. This manual also covers the 10", 13", 14 1/2", 16" and the 16"x24" lathes. This manual contains exploded view diagrams of all the parts for this lathe, and it includes the different bases.

South Bend

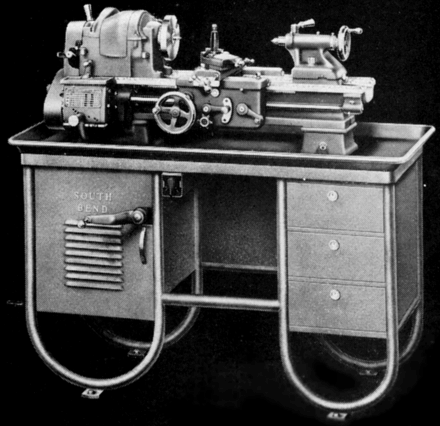

South Bend Above is the type of gear box and lathe covered in this manual.

Please note:

I have three different manuals in my eBay store that cover three different configurations and vintages of "Heavy" South Bend Lathes. Some of the manuals overlap on certain machines and parts, because South Bend didn't change every machine and part at precise times, but I can help you match the appropriate manual with your machine. Below is an explanation of the three different manuals. If you have any questions about a manual, please let me know.

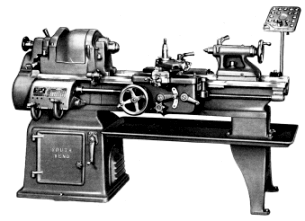

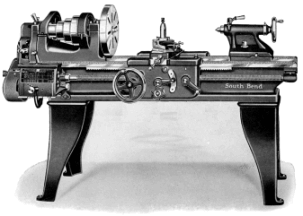

Manual Title: SOUTH BEND 9"-24" Lathe Parts Manual Series O,N,R,T,&Jr

Timeframe: 1906-1950's

Gear box has one lever on top and bottom, and covers lathes without gear boxes.

Manual Title: SOUTH BEND 10L,13,14.5,16 40'-50's Lathe Part Manual

Timeframe: 1940's-1950's

Gear box has one lever on top and bottom.

Manual Title: SOUTH BEND 10" 13" 14.5" 16" & 16/24" Lathes Manual/Parts

Timeframe: 1950's-Present

Gear box has two levers on the bottom.

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
