U.S.MILLRITE Burke Vertical Mill Manual Parts List

Price:

$24.99

Availability:

In Stock

Manual Description

Number of Pages: 19

This is a reproduction, not a photocopy, of an original Millrite- U.S. Burke Ram and Turret Milling Machine, Instruction and Parts Manual. This manual contains information on lubrication, adjustments, maintenance, and controls as well as a complete parts list with exploded view diagrams. It also covers a , turret and plain overarm, turret and compound overarm, standard head assembly, rapid quill feed head assembly, power feed table assembly, and the power head feed assembly. It has a good page on how to change and preload spindle bearings.

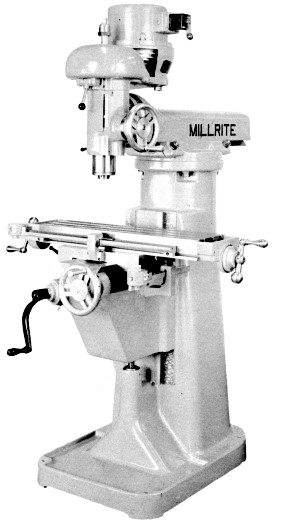

Millrite Vertical Milling machine

General Instructions........................1-5
Change Preload of Spindle Bearings............6
Controls and Major Components.................7
turret and compound overarm...................8
turret and Plain overarm......................9
Knee Assembly................................10
Table and Saddle Assembly....................11
Standard Head Assembly.......................12
Rapid Quill Feed Head Assembly...............13
Vise Assembly................................14
Coolant Attachment Assembly..................14
Power Feed Table.............................15
Power Feed Head...........................16&17
Wiring Diagram...............................18
Accessories..................................19

Overview

I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear; they are then comb bound with heavy cover pages so they lie flat on the workbench.
